Angled Solutions for Esthetic and Functional Restorations

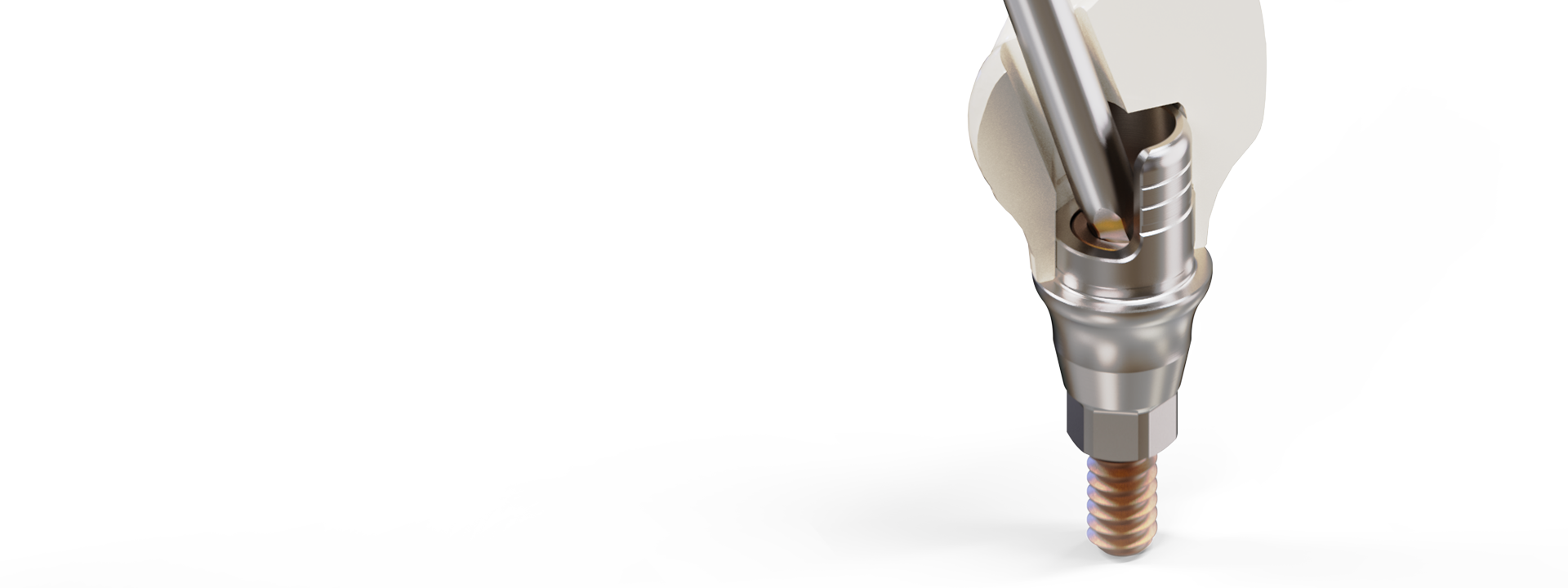

The BioAbutment ASC (Angled Solution Channel) Ti-Base offers advanced flexibility and esthetic solutions for screw-retained implant prosthetics. Up to 25° of angulation enables optimal screw-channel positioning, improving access and enhancing both anterior and posterior restorations.

Uncompromised Esthetics

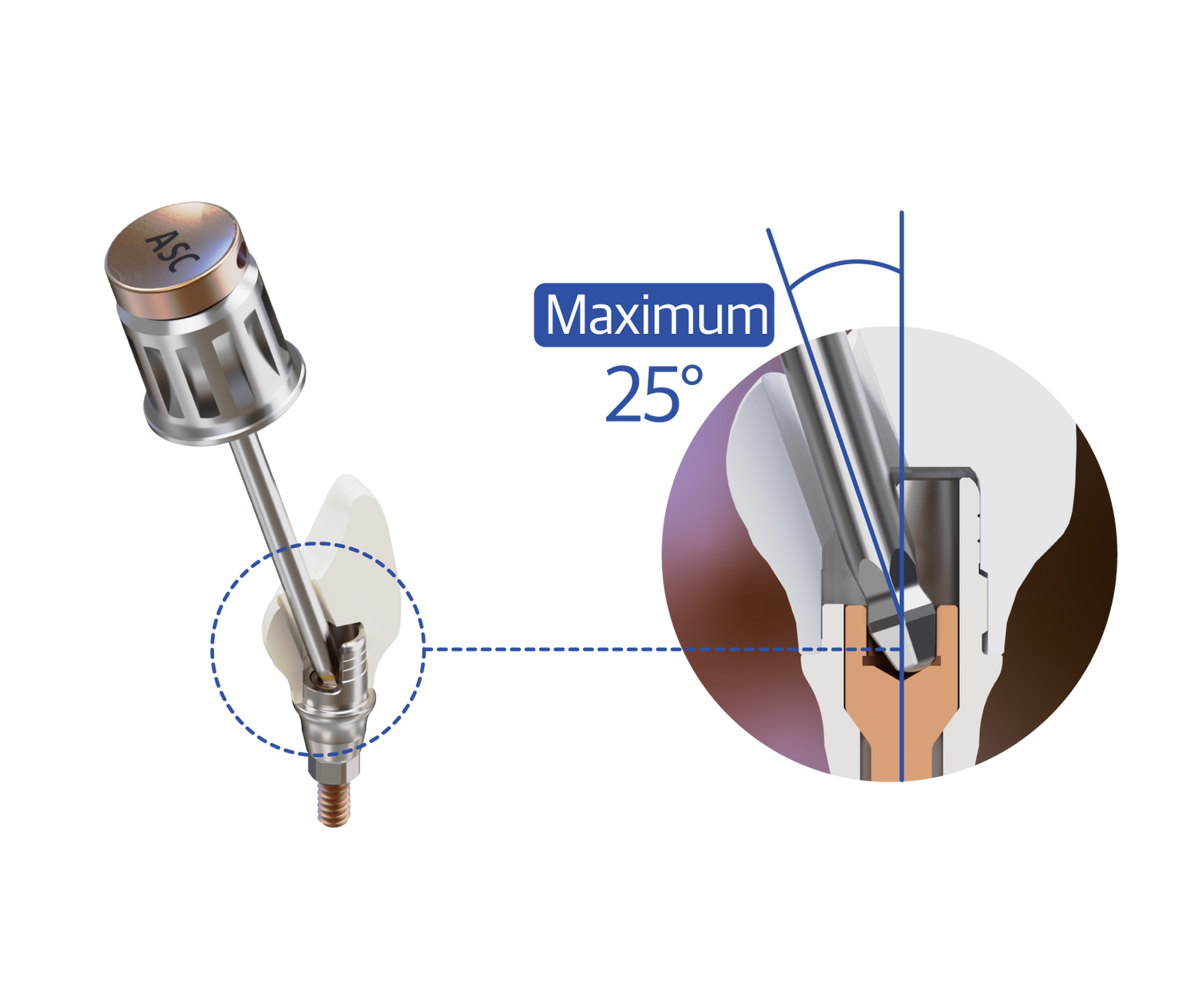

  • Allows screw-channel angulation up to 25° for esthetic, screw-retained restorations.
  • Ideal for the anterior region, with screw holes positioned lingually for a natural appearance.
  • Supports prosthetic-driven implant placement to meet esthetic demands.

Key Features

  • Enhanced Access and Functionality

    • Improves driver access in challenging posterior zones.

    • Includes two ASC screws, compatible with recommended OEM torque values, and the BioAbutment® ASC screwdriver (sold separately).

    • Small screw channel diameter maximizes space for restoration and reduces the risk of chipping.

  • Flexible Design Options

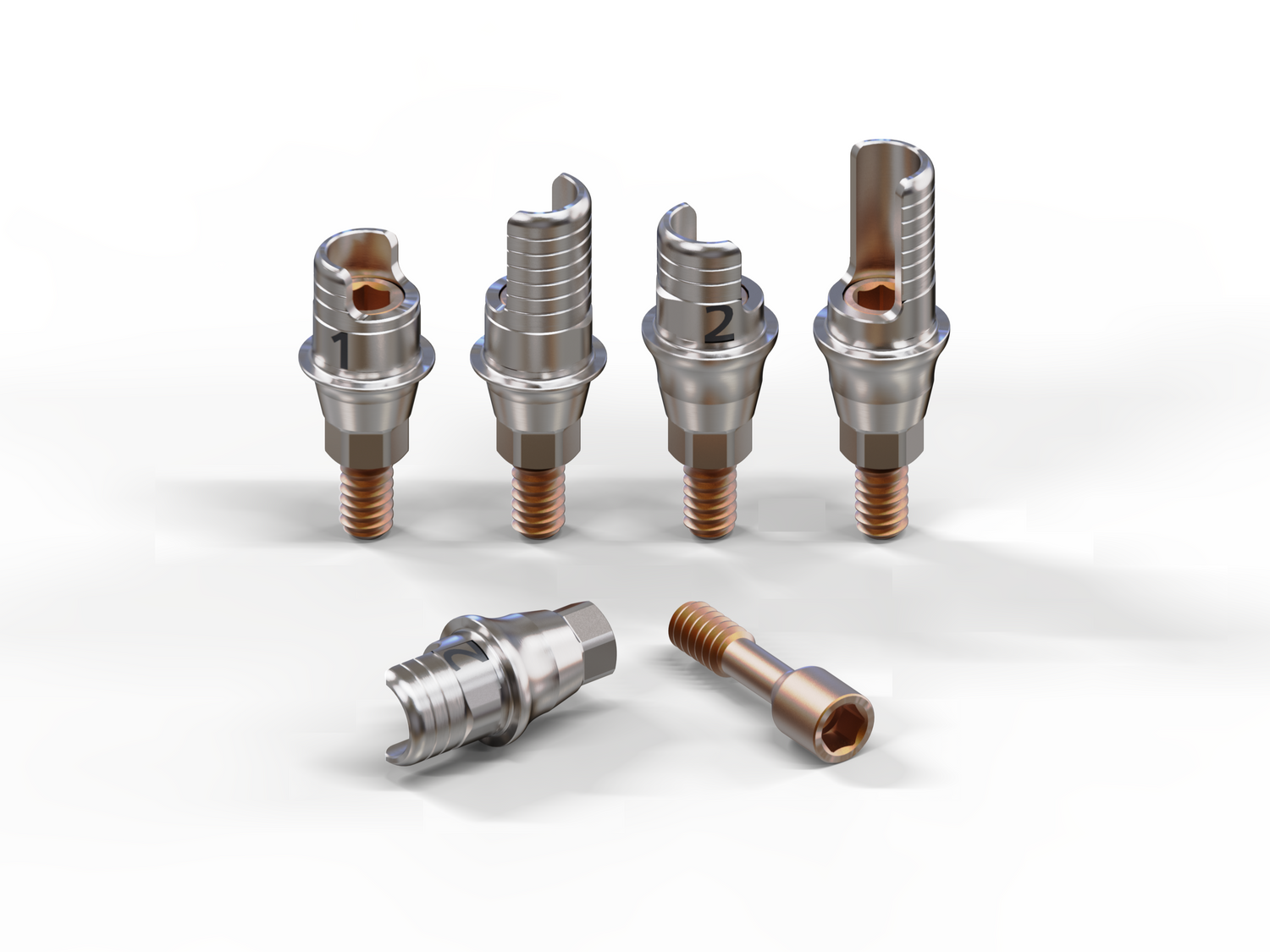

    • Post heights of 3.5mm and 5.5mm accommodate various clinical needs.

    • Gingival heights of 1mm and 2mm allow customization for soft tissue management.

    • Simplifies revision procedures while ensuring strength and longevity.

BioAbutment ASC Ti-Base is the reliable choice for achieving precision, functionality, and esthetic excellence in screw-retained dental implant restorations.

CATALOG

Product specification

DEEP IN

- Options : engaging
- Post heights: 3.5mm / 5.5mm

- Gingival heights: 1mm / 2mm
- Packing : includes two ASC screws, compatible with recommended OEM torque values and the BioAbutment ASC screwdriver (sold separately).
